Injection Grout/Mortar 5

Price:
$12.50 Regular Price

Size: 1 Quart

  • Product Info

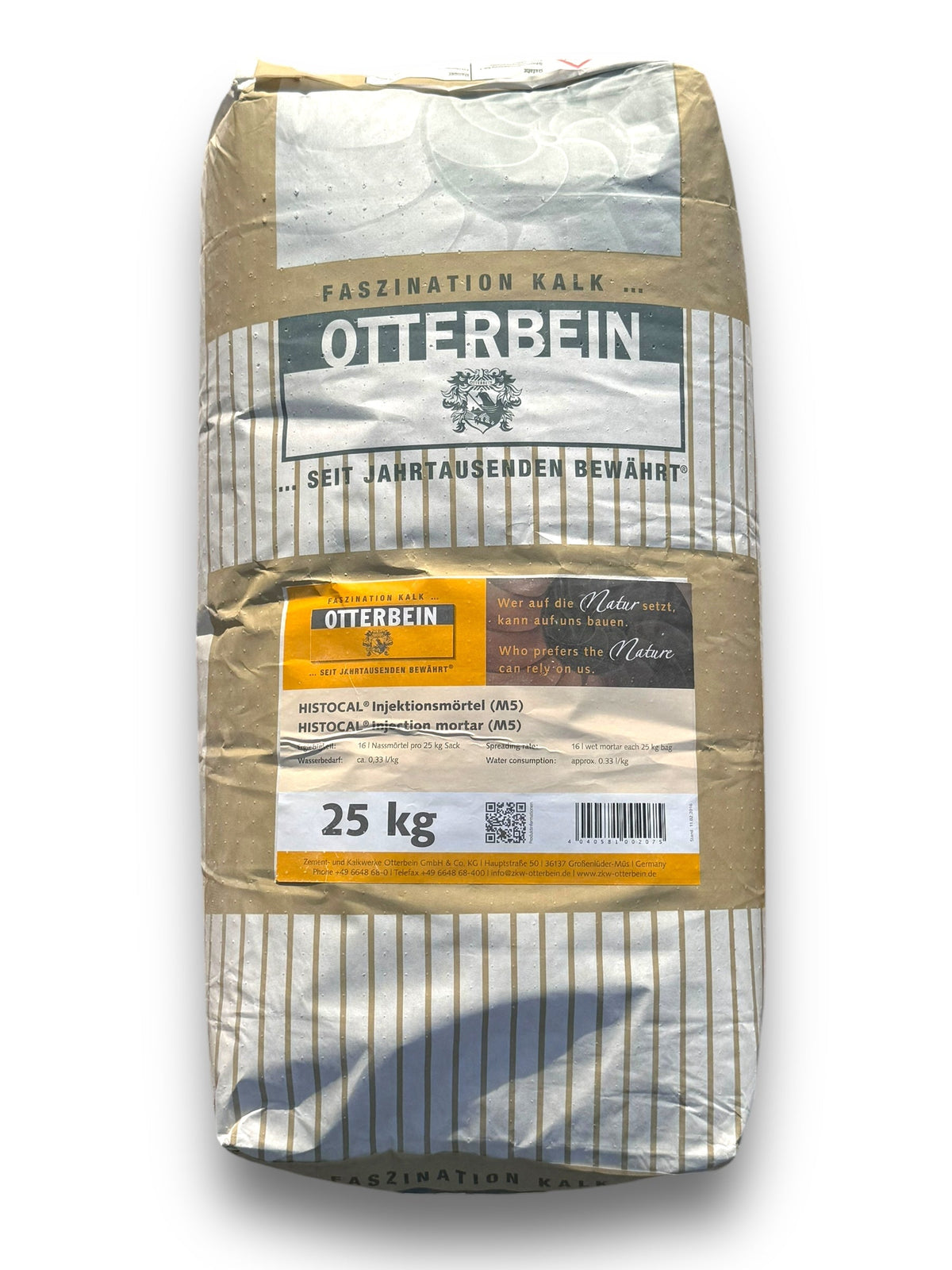

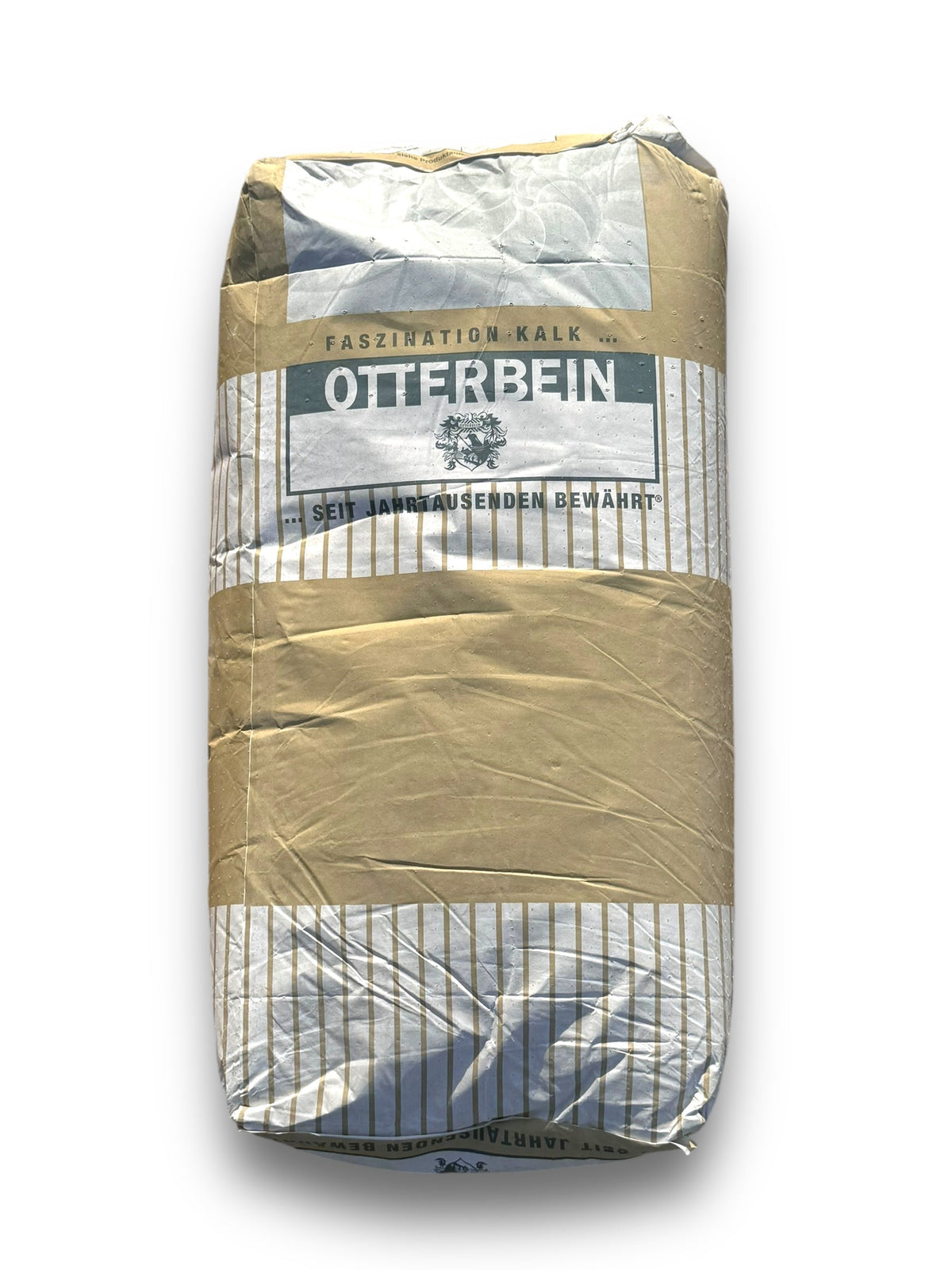

    Otterbein Injection Grout/Mortar 5

    Special lime mortar based on natural hydraulic lime for filling cavities, filling cracks and joints with a caulking gun or injection pump and for strengthening natural stone and clinker masonry indoors and outdoors, especially for objects relevant to monument preservation.

    HISTOCAL ® injection mortar - M5 - consists of natural hydraulic lime (NHL) according to EN 459-1, pozzolan, grain graded crushed lime sand and additives and is a purely lime-bound, cement-free product. HISTOCAL ® injection mortar – M 5 – is suitable for filling cracks and cavities , particularly in historical buildings and when renovating masonry. It impresses with its soft, plastic consistency , is pumpable and pressure-resistant .

    Technical Data
    Product Brochure

    Spreading Rate

    21 l wet mortar each 25 kg (55lb) bag

    Water Consumption

    approx. 0.33 l/kg

    Composition

    HISTOCAL® Injection mortar – M5 consists of natural hydraulic lime NHL 5 acc. to EN 459-1, Puzzolan, grain-classified crushed lime sands and improvement additives.

    Properties

    • Free of cement
    • Soft, plastic consistency
    • Lime-bound
    • Suitable for pumping
    • Pressure-stable

    Application

    HISTOCAL® Injection mortar – M5 is suitable for the filling of cracks and hollow spaces, in particular at historic monuments and for masonry renovation.

    Substrate

    The substrate must be clean and free from loosely attached particles. A sufficient preliminary wetting is compulsory.

    Special notes

    Protect fresh mortar against fast drying-up. The air and surface temperature must be at least 5 ° C and maximum 25 ° C. HISTOCAL® Injection mortar – M5 shall only be used in the original state without additives.

    Storage

    Dry, if possible on wooden shelves and protected against draft.

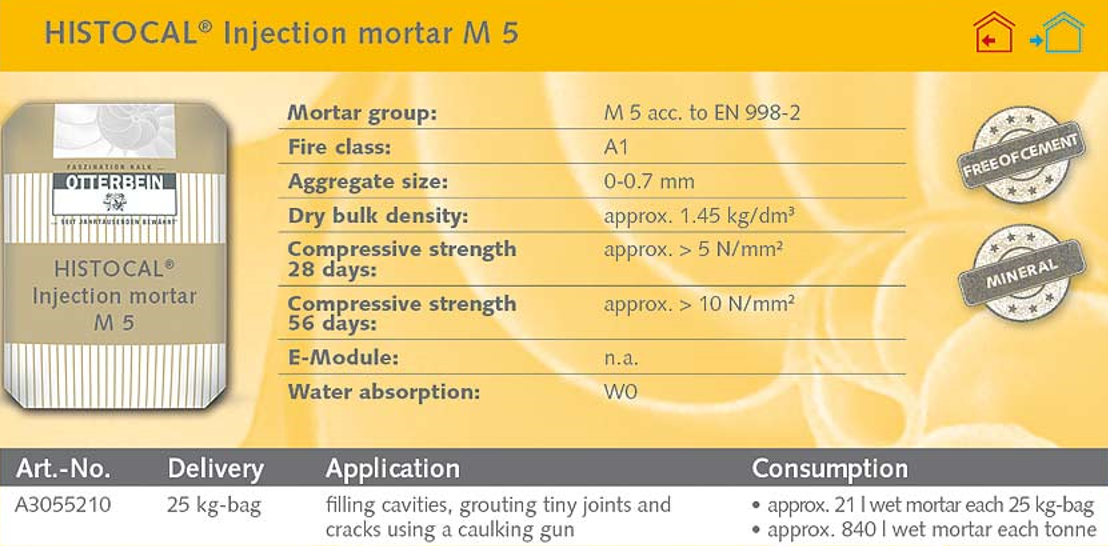

    Technical data

    • Mortar group: M5 acc. to EN 998-2
    • Fire Class: A1
    • Compressive strength after 28 d: >5N/mm2
    • expected compressive strength after 56 d: >10 N/mm²
    • Solid mortar density: 1.45 kg/dm³.
    • Largest grain size: < 0.7 mm
    • Water absorption: W0

    Safety instructions

    Mortal will react very alkaline with water, thus: Protect skin and eyes, rinse thoroughly with water in case of contact, immediately contact doctor in case of eye contact.

    Quality-monitored production

    HISTOCAL® Injection mortar – M5 is continuously tested in our plant laboratory within the scope of our in-house monitoring with respect to the fulfilment of composition and properties. This will ensure a uniform quality of the product.

  • Weight:

    2.25 lb

  • Brand:

    Otterbein
